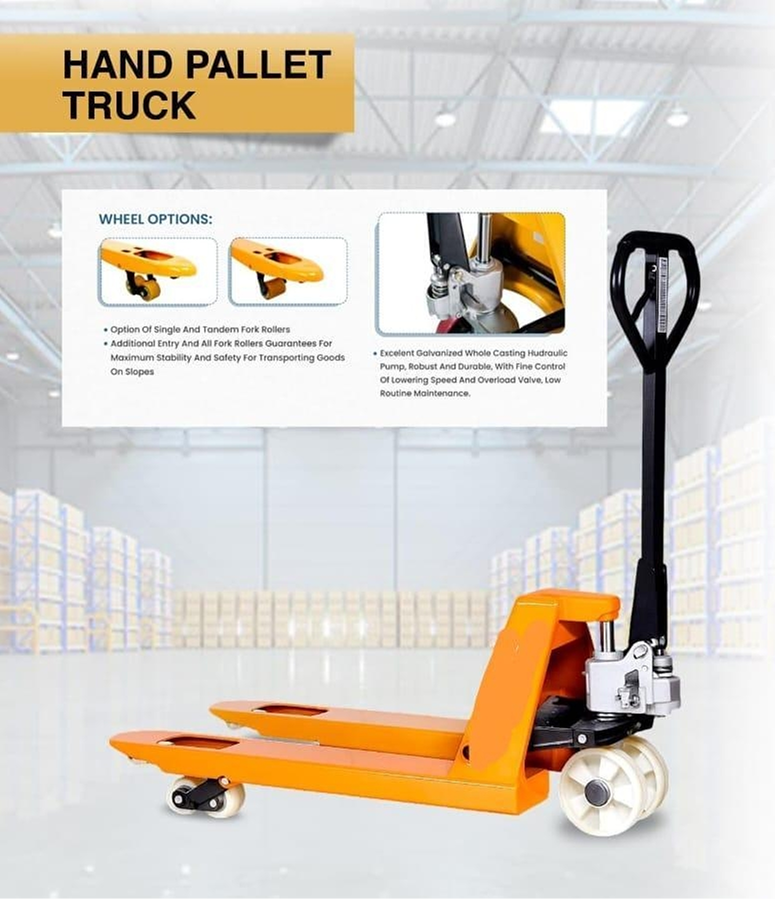

Hand pallet truck 3 ton
Hand pallet truck 3 ton
Couldn't load pickup availability
Technical Benefits
-
Load Capacity – Supports 3000 kg to 5000 kg, depending on the model
-
Manual Hydraulic Pump – Easy-to-use hand-operated hydraulic lifting system
-
Fork Dimensions – Available in standard sizes (e.g., 1200 mm length, 550 mm width)
-
Ergonomic Handle – Comfortable grip with three-position control (lift, lower, neutral)
-
Heavy-Duty Steel Frame – Durable construction for long-term use
-
Smooth Rolling Wheels – Nylon, polyurethane, or rubber wheels for easy movement
-
Low Maintenance – No battery or motor, reducing operational costs
-
Compact & Lightweight – Ideal for tight spaces and easy maneuvering
-
Overload Protection – Built-in safety valve to prevent overloading damage
-
Versatile Applications – Suitable for warehouses, logistics, supermarkets, and factories
Technical Specifications
| Feature | 3000 kg | 5000 kg |
|---|---|---|
| Capacity (kg) | 3000 | 5000 |
| Min. Fork Height (mm) | 85 | 85 |
| Max. Fork Height (mm) | 200 | 200 |
| Lifting Height (mm) | 110 | 110 |
| Fork Length (mm) | 1200 / 1200 | 1200 / 1200 |
| Sheet Thickness | 4 mm | 6 mm |
| Pump Shaft Diameter | 35 mm | 45 mm |
| Single Fork Width (mm) | 160 | 160 |
| Overall Fork Width (mm) | 550 / 685 | 550 / 685 |
| Fork Wheel – Single (mm) | 74×93 / 80×93 | 74×93 / 80×93 |
| Fork Wheel – Tandem (mm) | 80×70 / 74×70 | 80×70 / 74×70 |
| Steering Wheel (mm) | 180×50 | 180×50 |
| Self Weight (kg) | 71 kg | 120 kg |
| Wheel Type | Nylon / Polyurethane | Nylon / Polyurethane |
